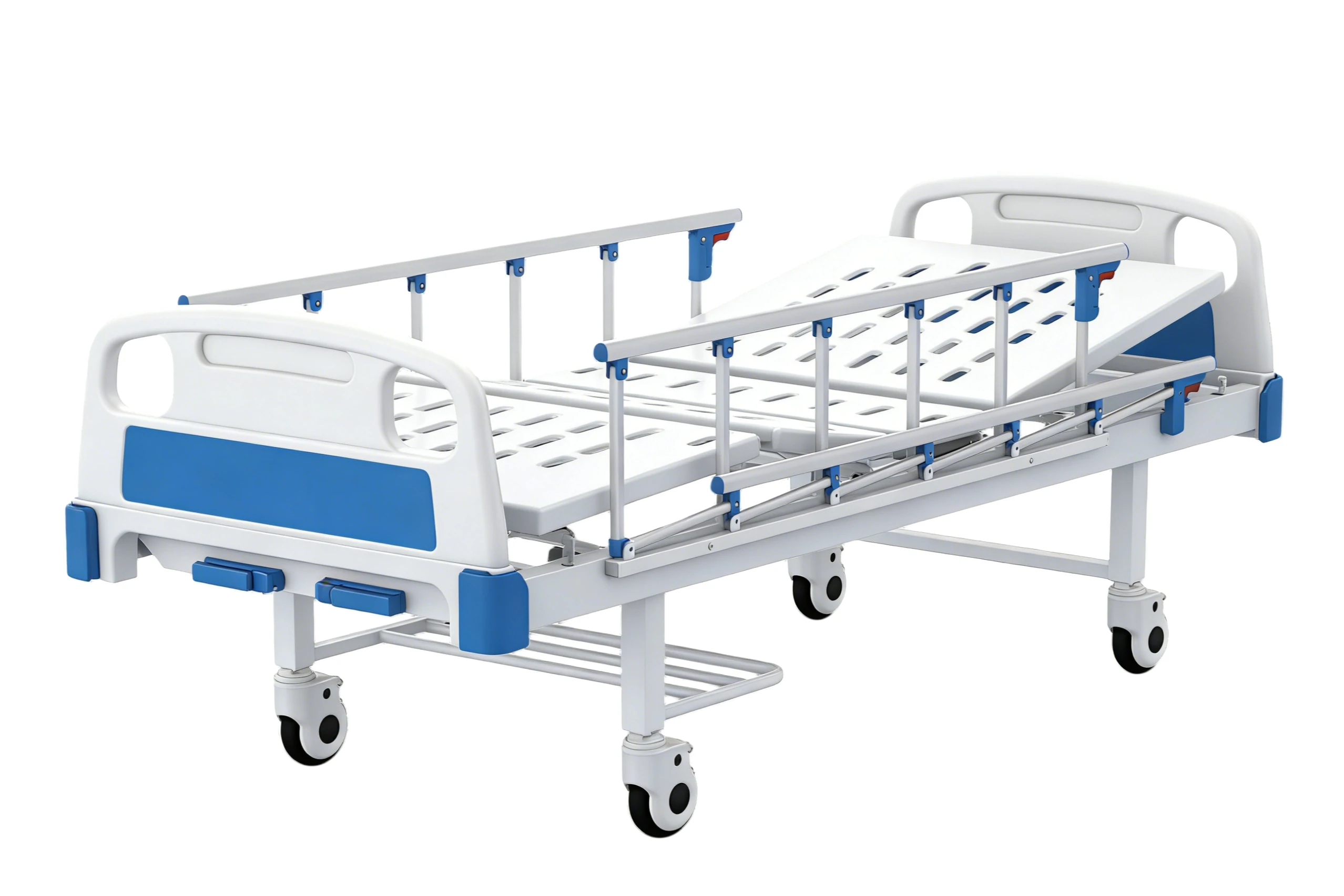

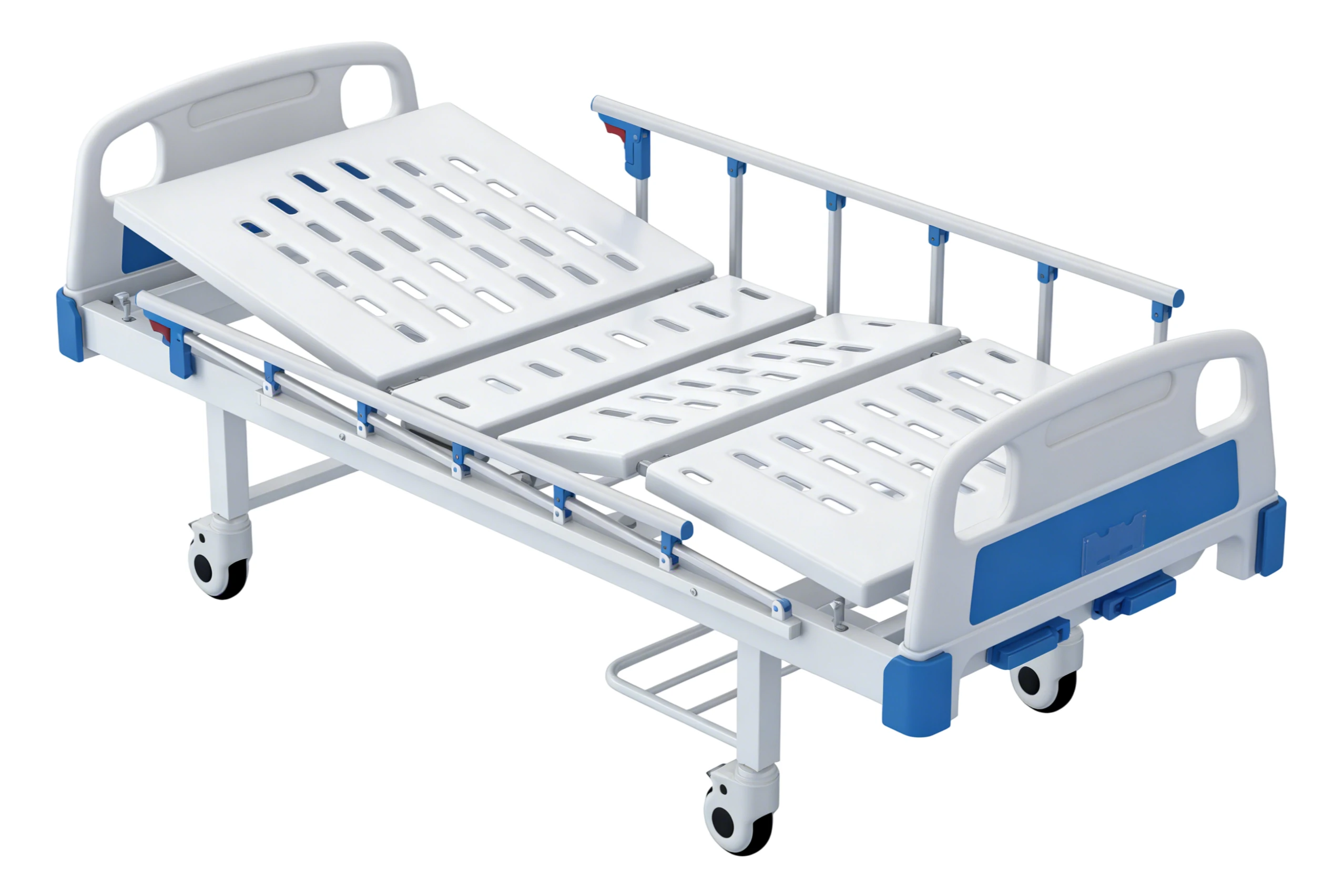

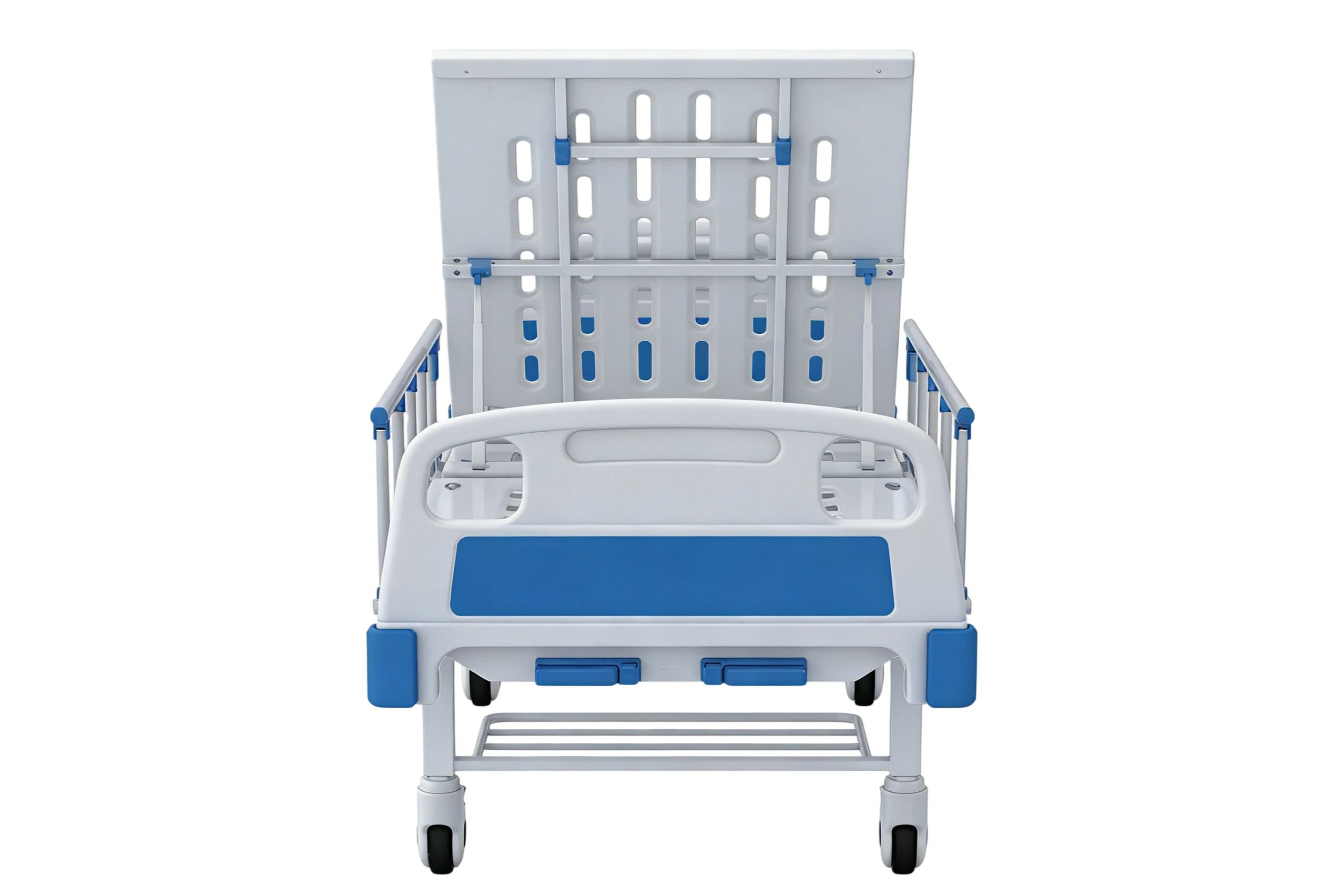

It is suitable for assisting care of patients who are bedridden for a long time due to quadriplegia or high paraplegia.
It is suitable for assisting care of patients who are bedridden for a long time due to quadriplegia or high paraplegia.
Show more text
Size (length × width × height):2000 × 900 × 450 mm
lifting angle
Back lift:0–80°
leg raise:0–45°
lifting method:manual
Headboard / Footboard:All are made of ABS material
bed frame:Using 80 × 40 × 1.2 mm rectangular steel tubes; the bed frame is equipped with 4 infusion rack sockets, including the infusion rack
Bed legs and casters
foot of the bed:Welding of 40 × 40 × 1.2 mm and 40 × 25 × 1.2 mm welded tubes
caster:125 mm diameter silent cover wheel, with brakes on all four wheels
A shoe rack is equipped on the side near the bed
guardrail
guardrail:Six-level aluminum alloy guardrail
upper and lower brackets:Stamping of 3mm thick cold-rolled steel sheet
aluminum alloy column:1.8 mm
crossbar:1.2 mm
base:30 × 20 × 1.5 mm steel pipe
The entire set of iron components is modularized, with guardrails labeled with warning signs and equipped with hand-trapping prevention devices
mattress:Thickness: 6 cm (2 cm eco-friendly brown + 4 cm flame-retardant foam), with breathable holes on both sides of the mattress
| Size (length × width × height) | 2000 × 900 × 450 mm |
| lifting angle | |
| Back lift | 0–80° |
| leg raise | 0–45° |
| lifting method | manual |
| Headboard / Footboard | All are made of ABS material |
| bed frame | Using 80 × 40 × 1.2 mm rectangular steel tubes; the bed frame is equipped with 4 infusion rack sockets, including the infusion rack |
| Bed legs and casters | |
| foot of the bed | Welding of 40 × 40 × 1.2 mm and 40 × 25 × 1.2 mm welded tubes |
| caster | 125 mm diameter silent cover wheel, with brakes on all four wheels |
| A shoe rack is equipped on the side near the bed | |
| guardrail | |
| guardrail | Six-level aluminum alloy guardrail |
| upper and lower brackets | Stamping of 3mm thick cold-rolled steel sheet |
| aluminum alloy column | 1.8 mm |
| crossbar | 1.2 mm |
| base | 30 × 20 × 1.5 mm steel pipe |
| The entire set of iron components is modularized, with guardrails labeled with warning signs and equipped with hand-trapping prevention devices | |
| mattress | Thickness: 6 cm (2 cm eco-friendly brown + 4 cm flame-retardant foam), with breathable holes on both sides of the mattress |
